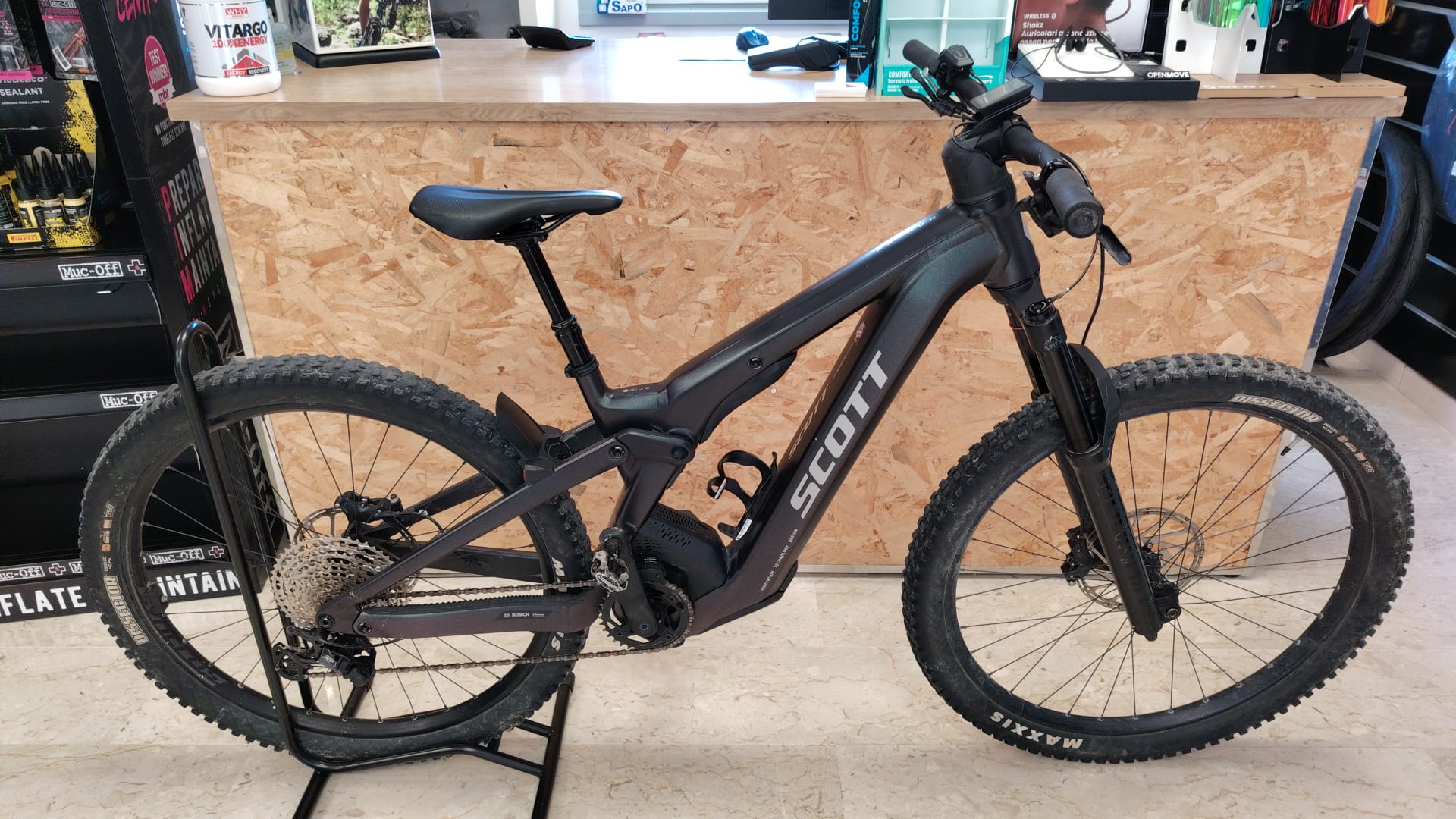

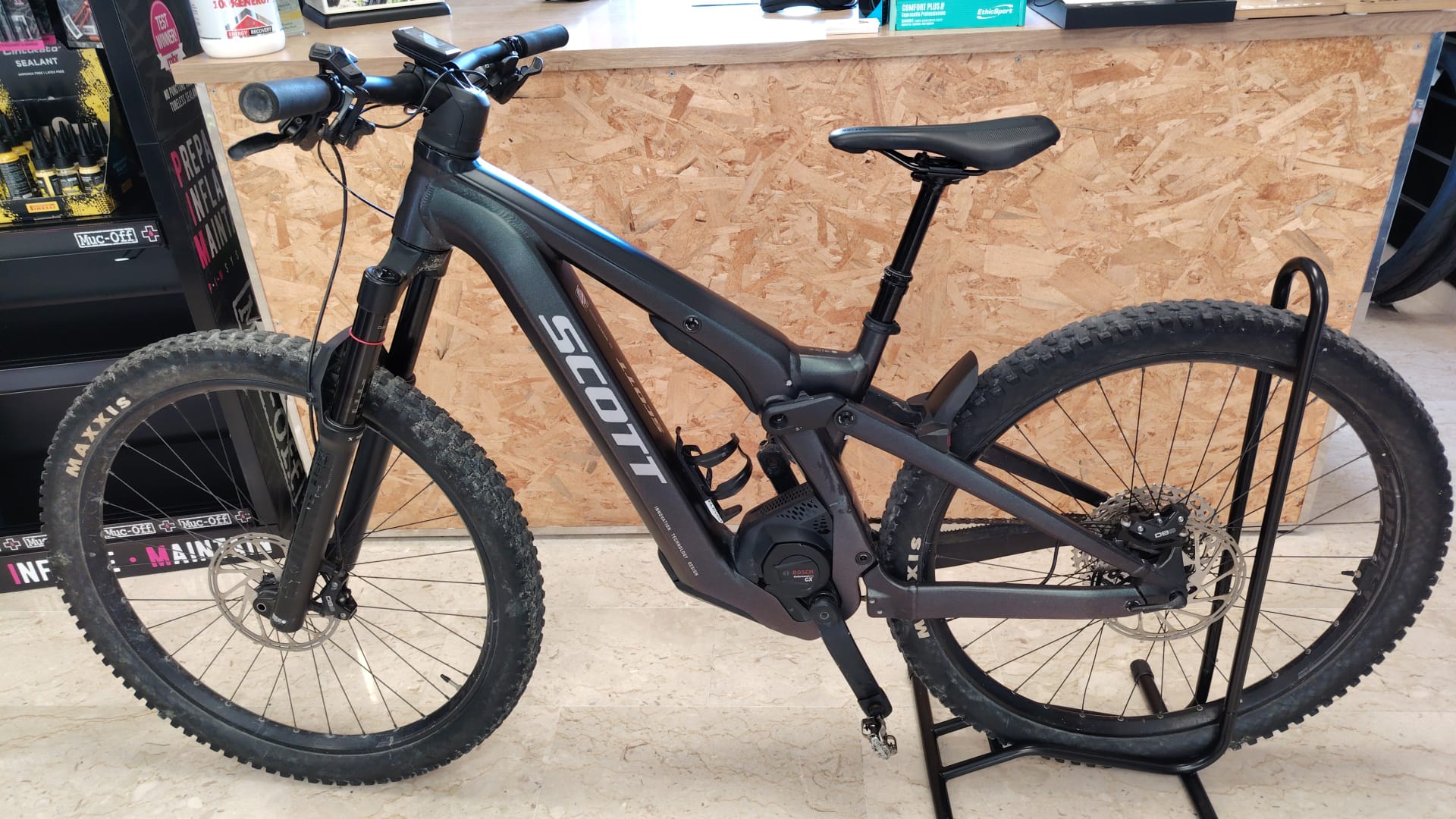

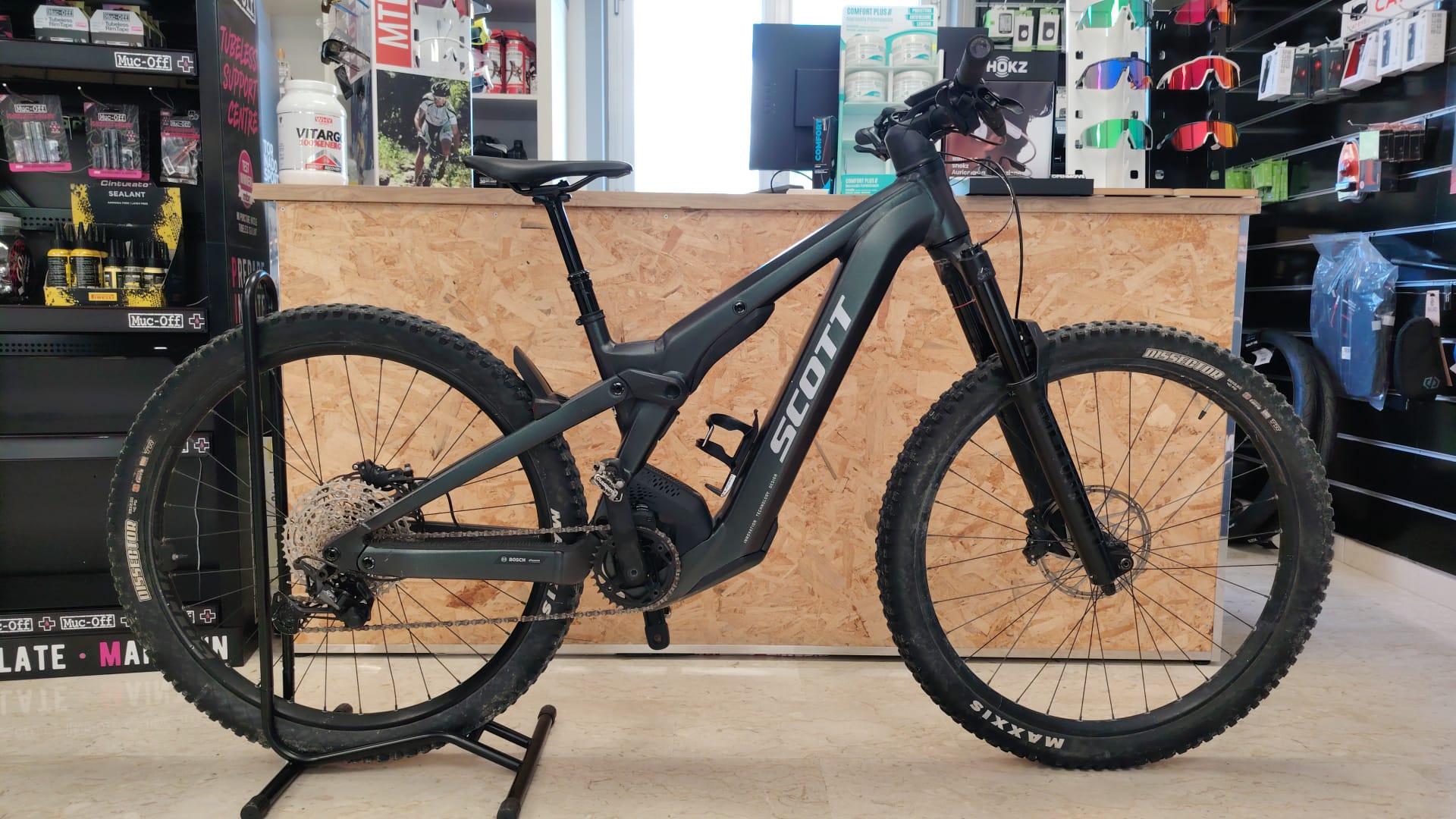

USATO
ANNO 2023
2855KM PERCORSI
MISURA S PER ALTEZZA MAX 170CM

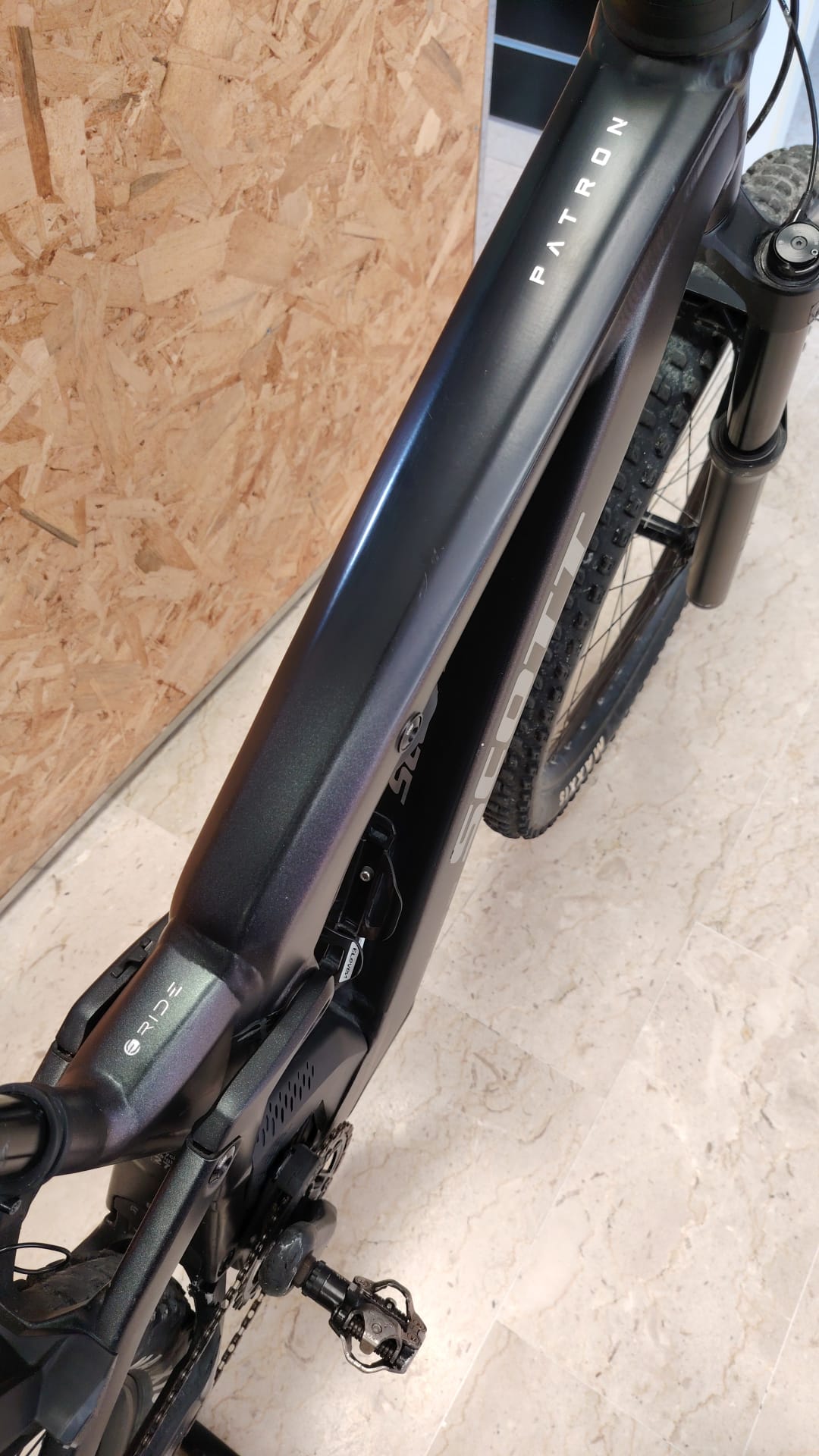

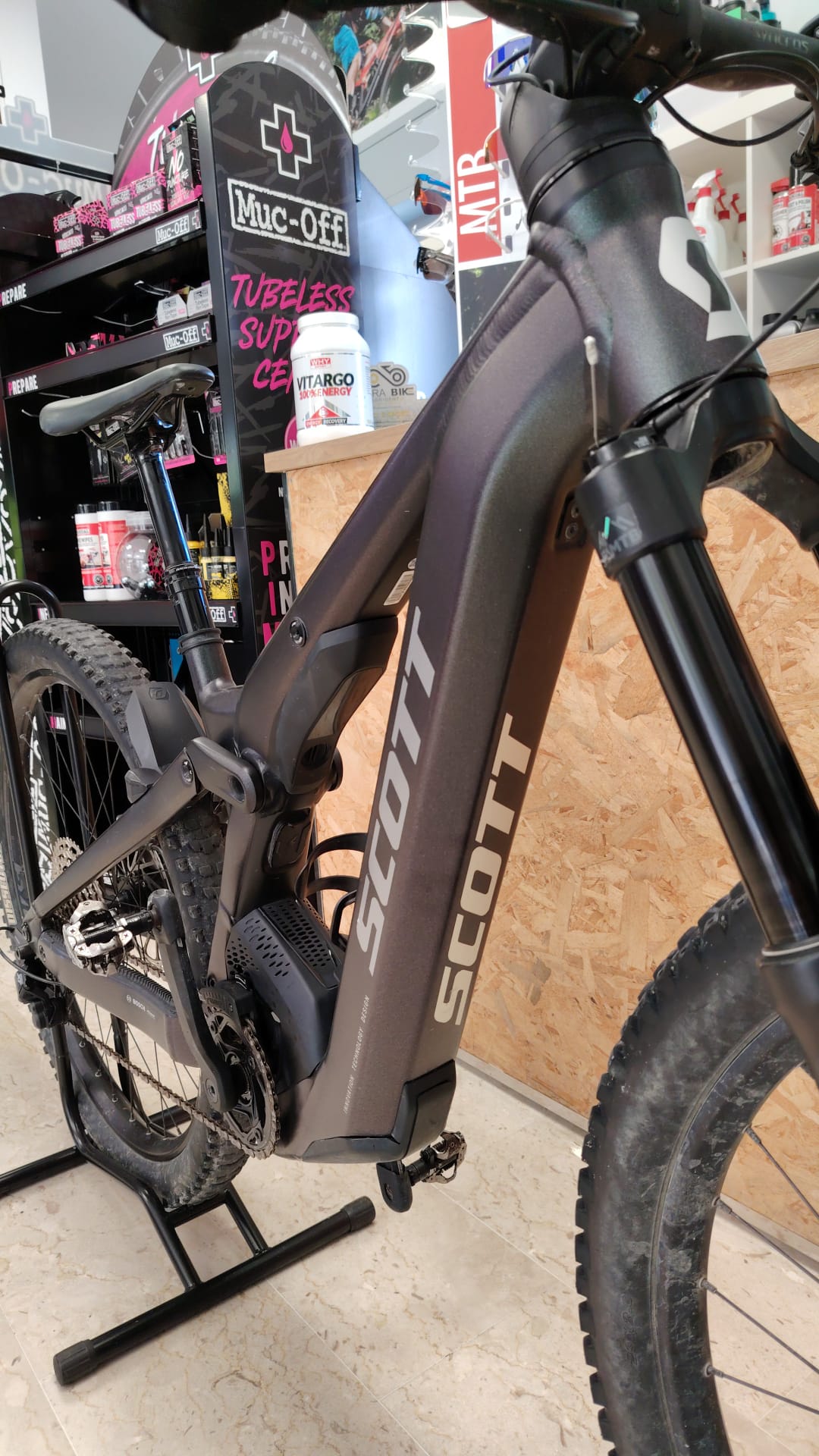

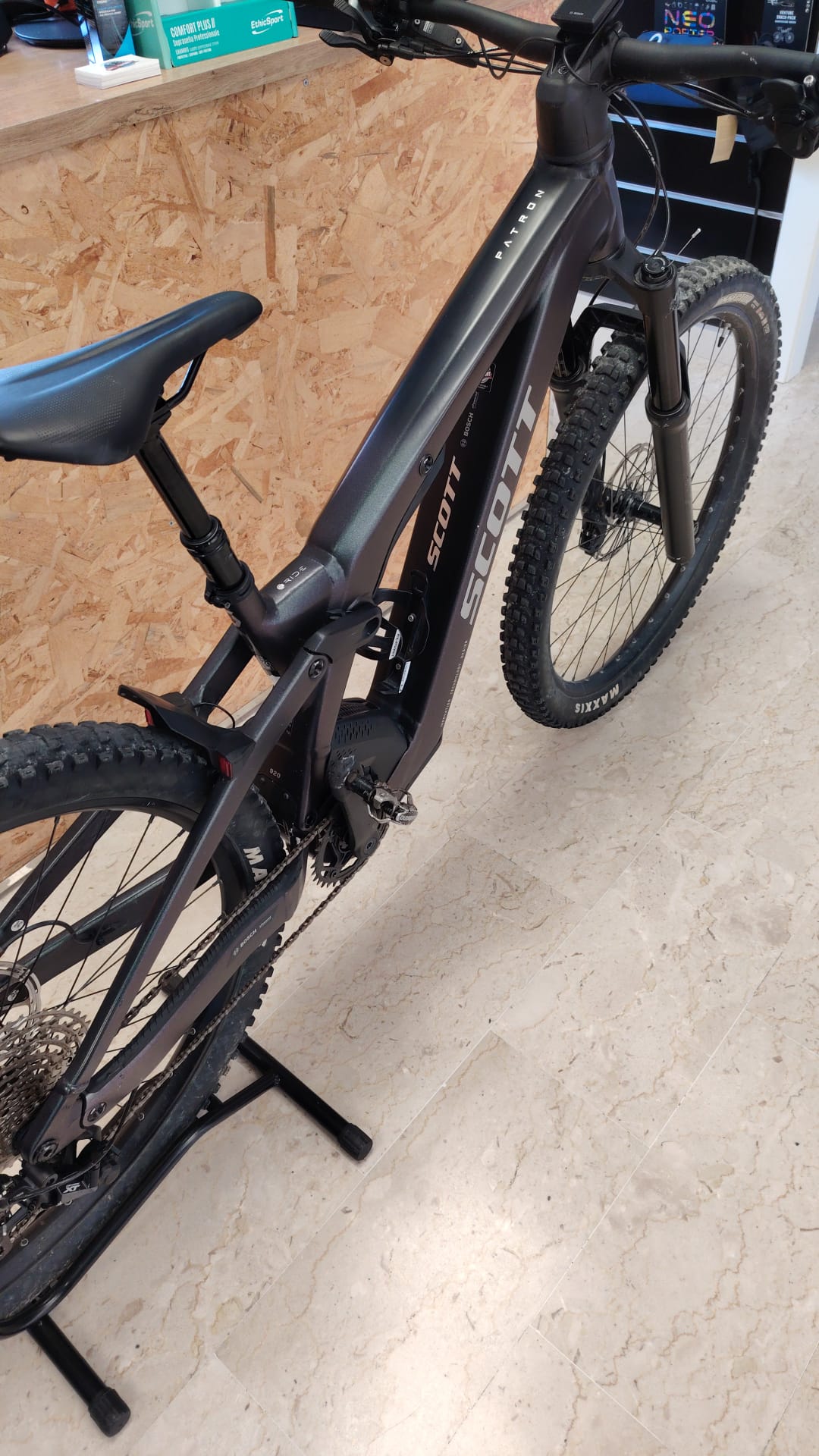

Telaio
Alloy Frame & Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8″ Headtube
Central Kickstand Mount
Integr. Cable
Escursione
Front: 160mm / Rear: 160mm

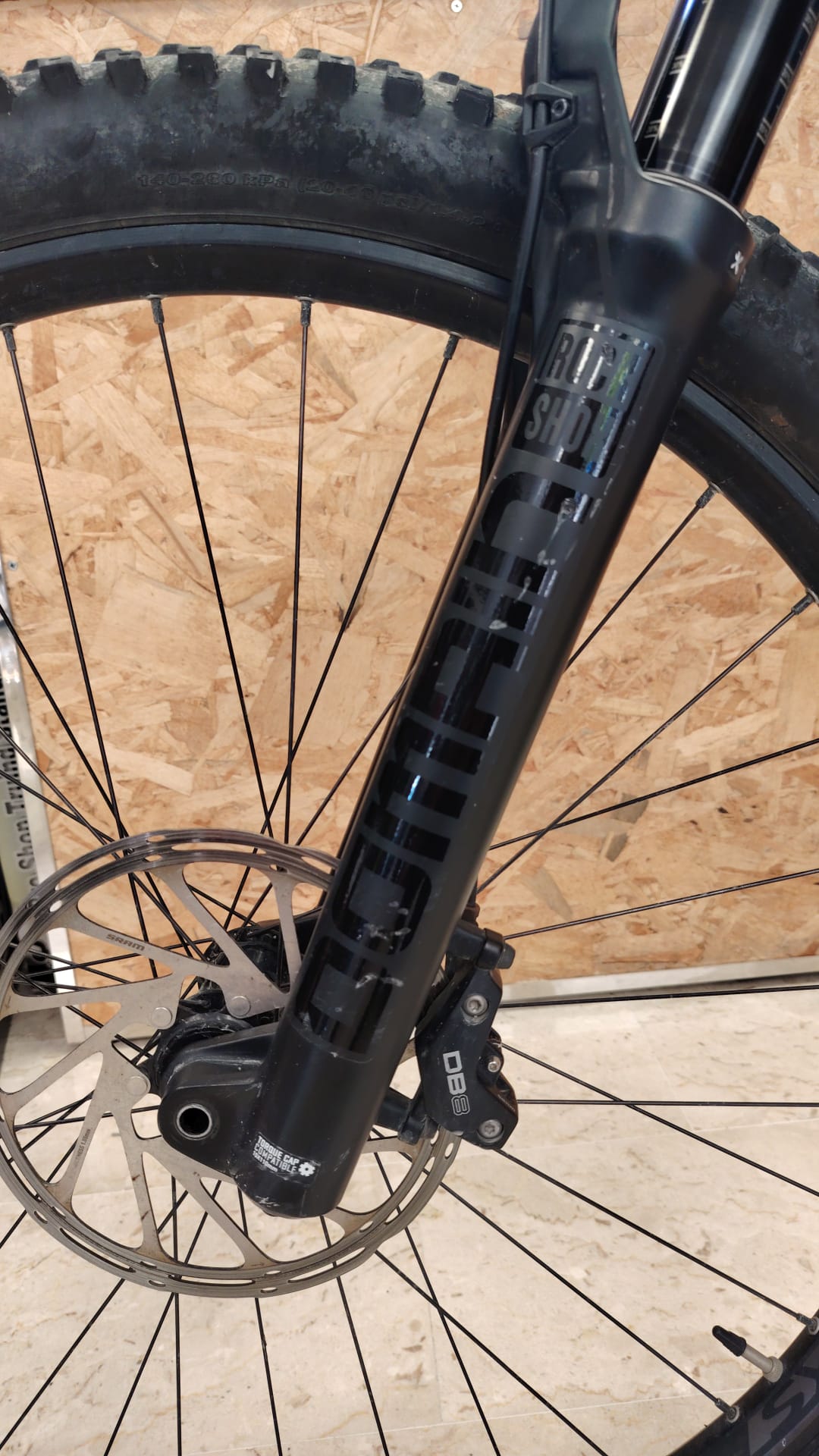

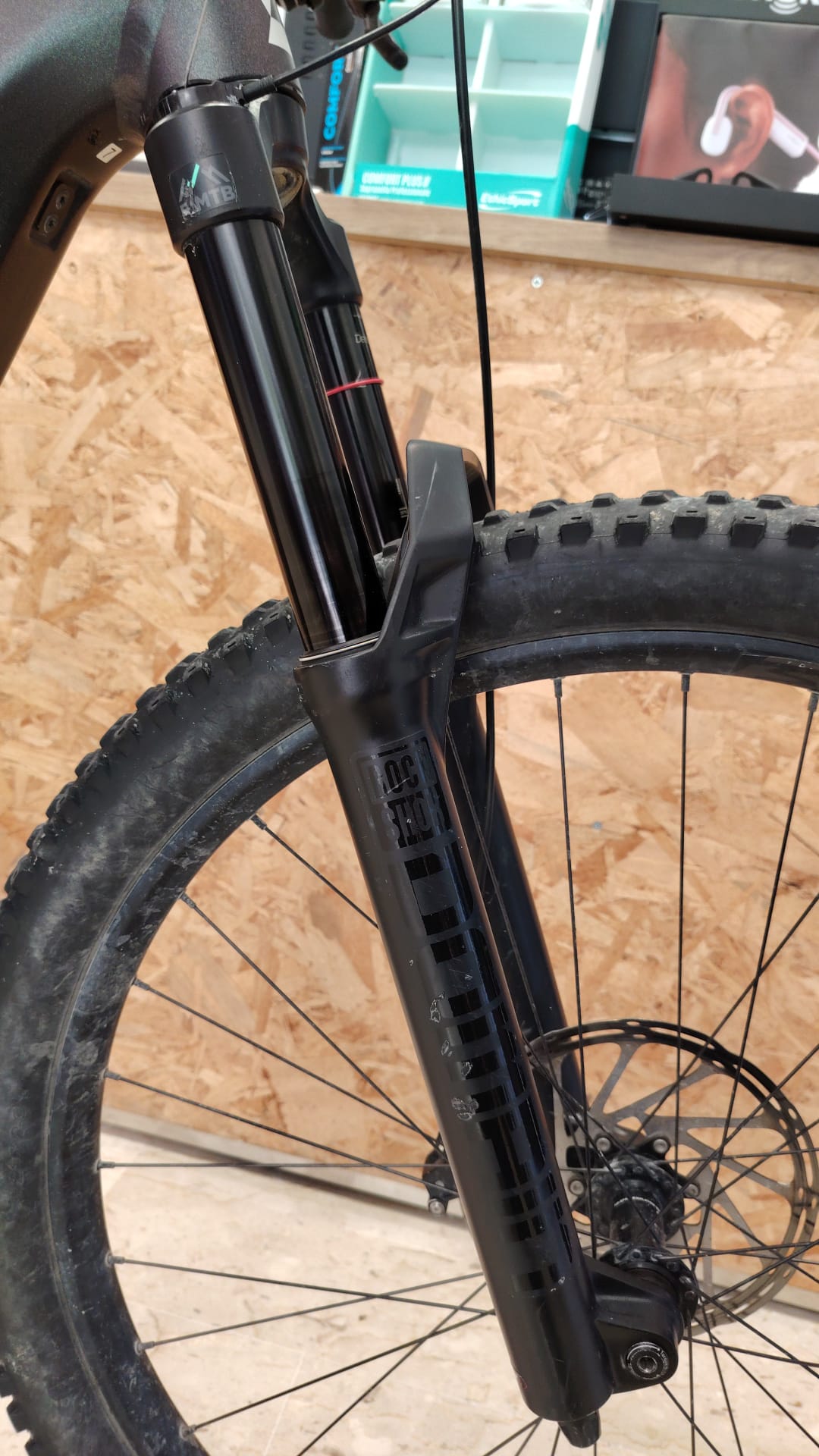

Forcella
RockShox Domain Air
15x110mm QR axle / 1.8″ Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike

Ammortizzatore posteriore
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm

comando remoto
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes

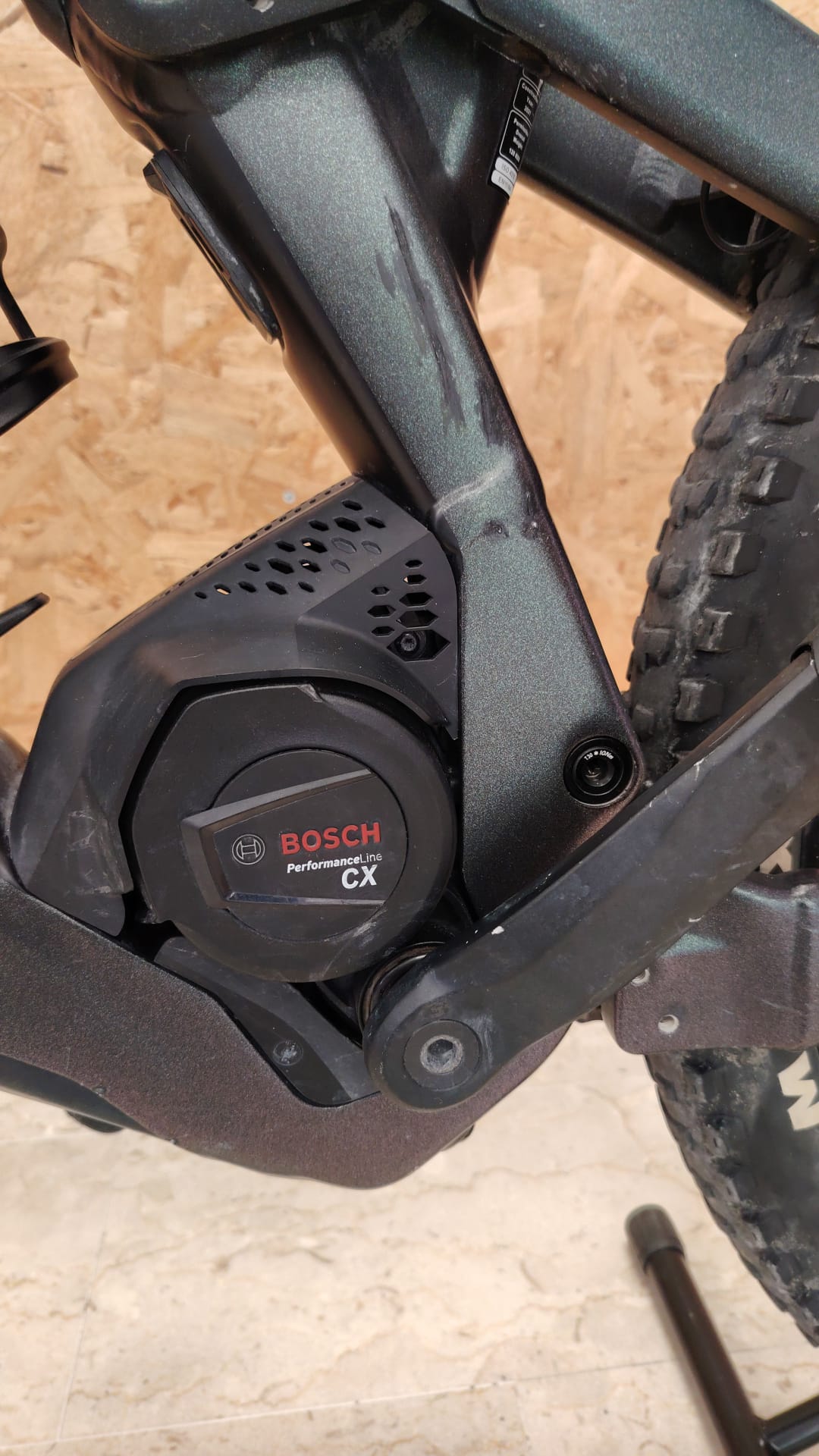

Motore
Bosch Performance CX 85Nm
EU: 25kmh / INT: 20mph

Batteria
PowerTube 750Wh

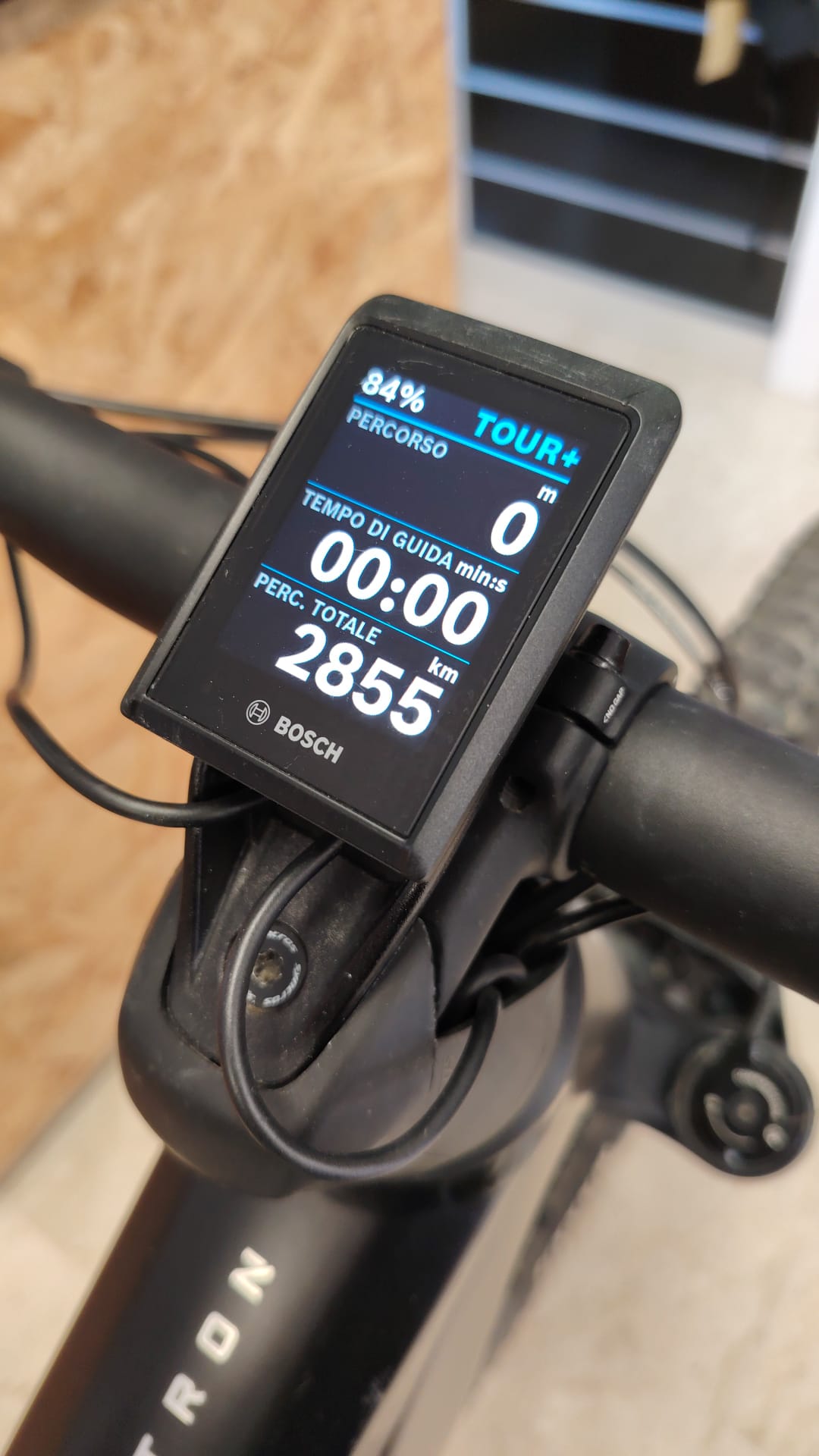

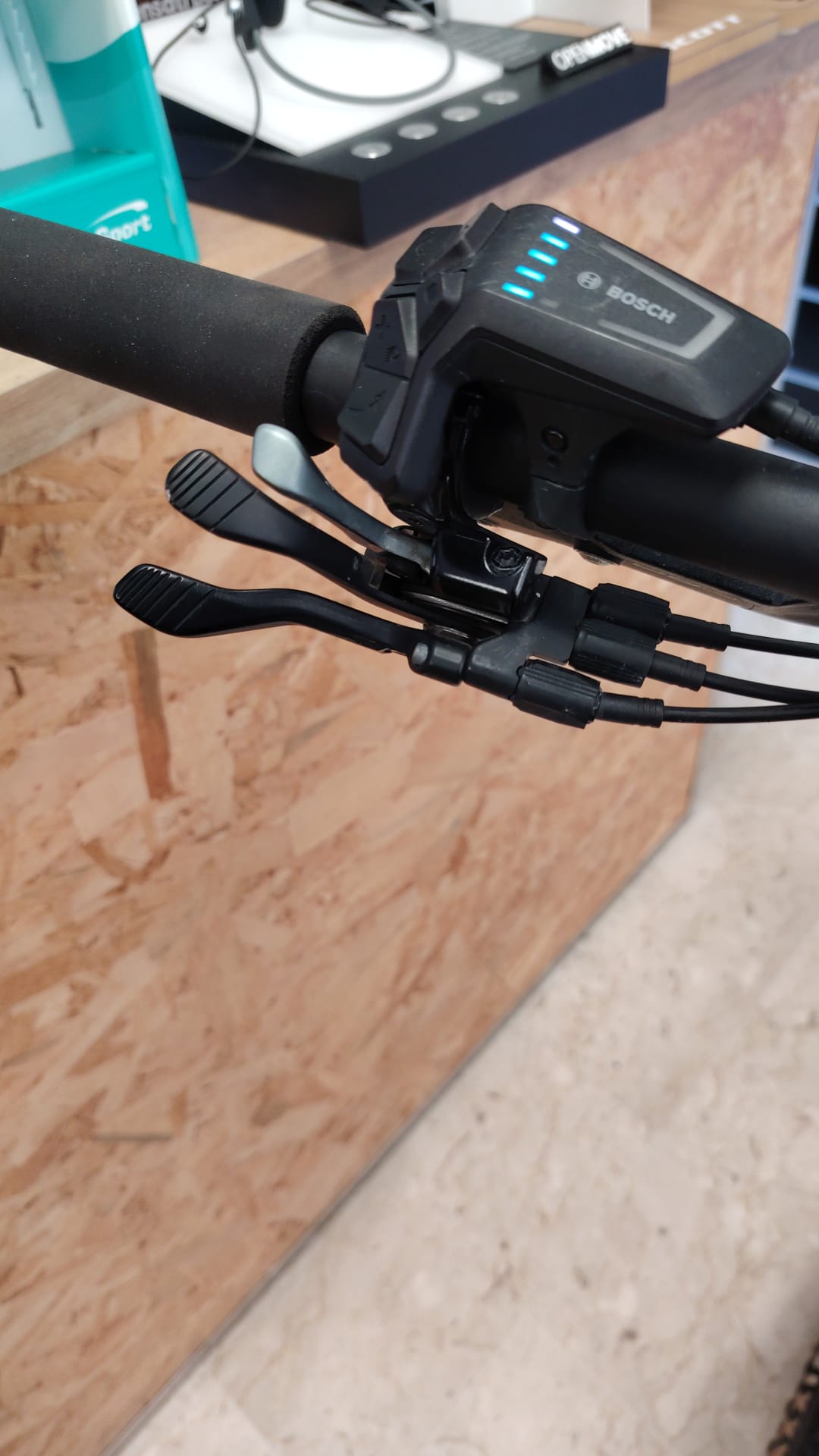

Schermo
Bosch LED Remote & Kiox 300

Caricatore
4A Charger

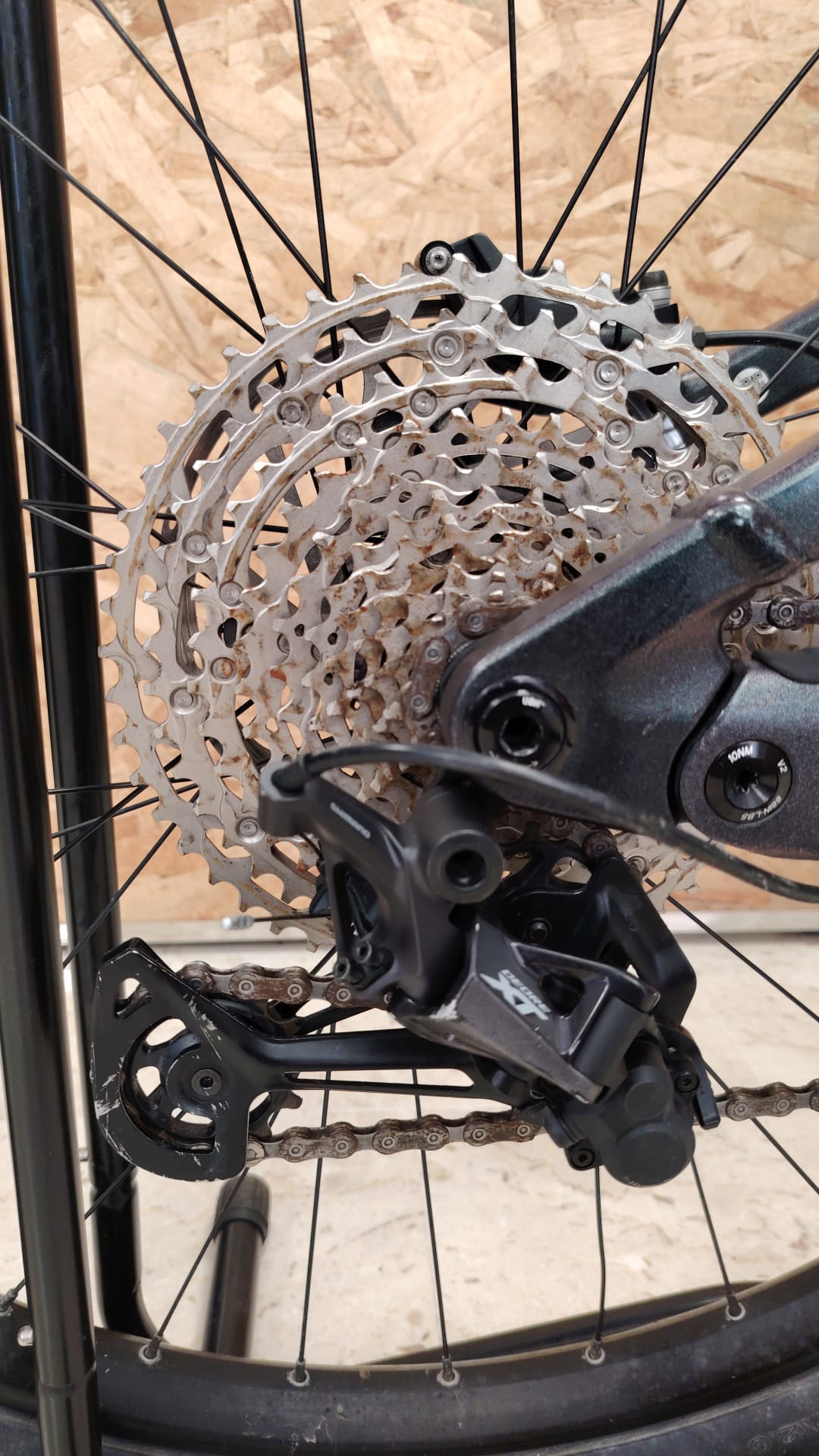

Deragliatore posteriore
Shimano XT / 12 Speed

Leve del cambio
Shimano SL-M6100

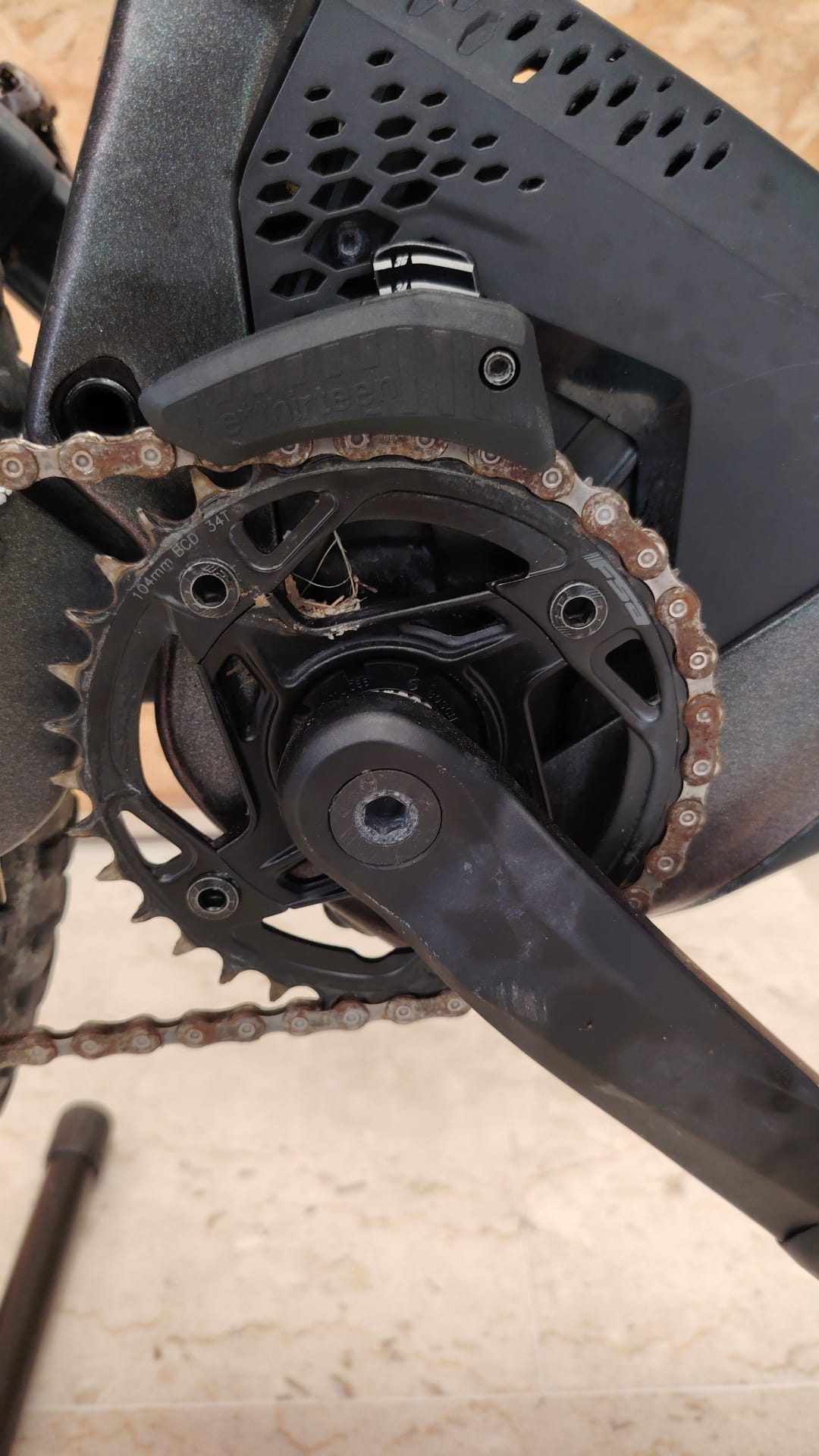

Guarnitura
FSA CK-745 165mm / 34T

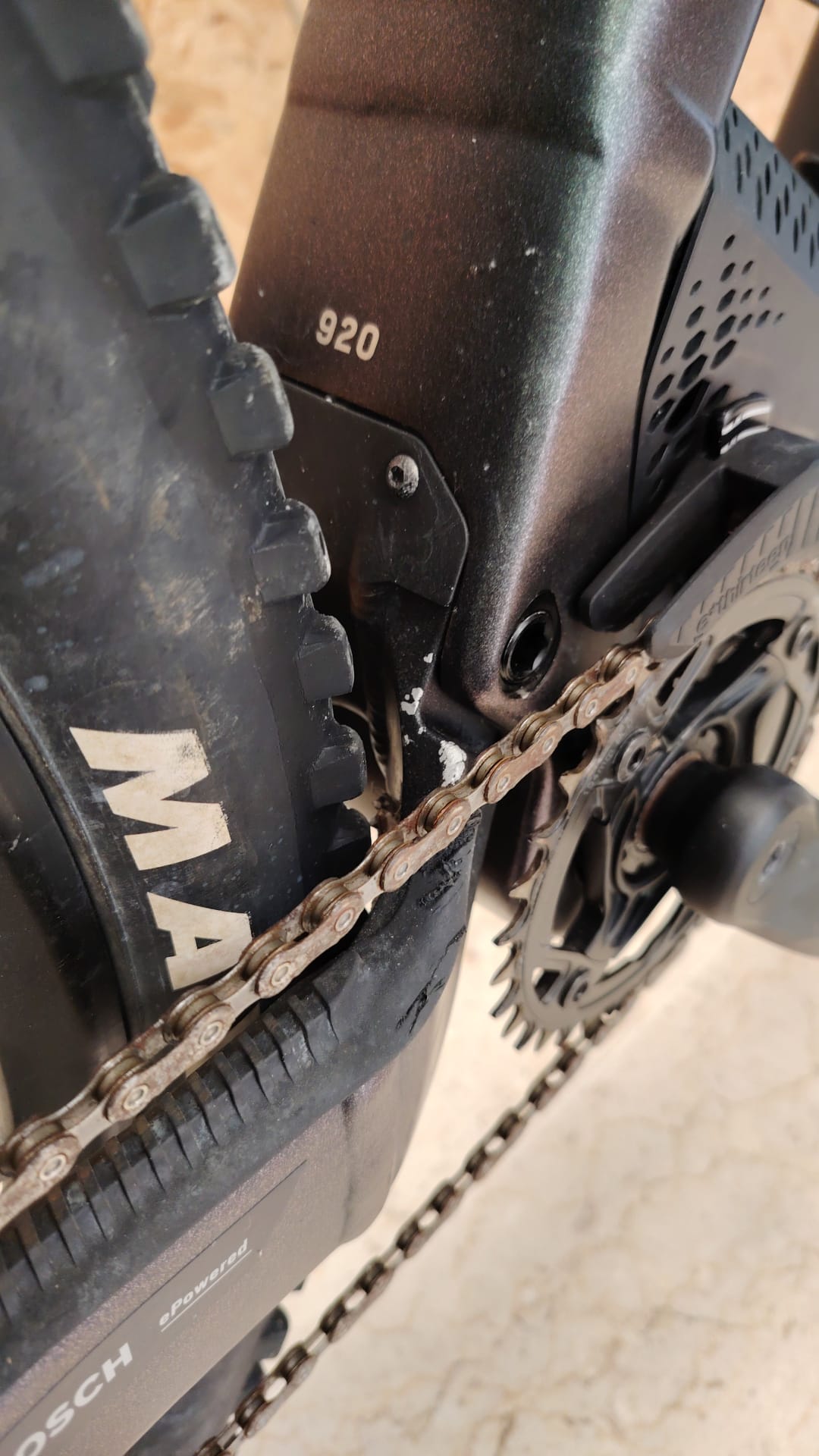

Guidacatena
e*thirteen / e*spec Slider

Corona
FSA W0138+WB499 / 34T / Steel

Catena
Shimano CN-M6100

Cassetta
Shimano CS-M6100 / 10-51T

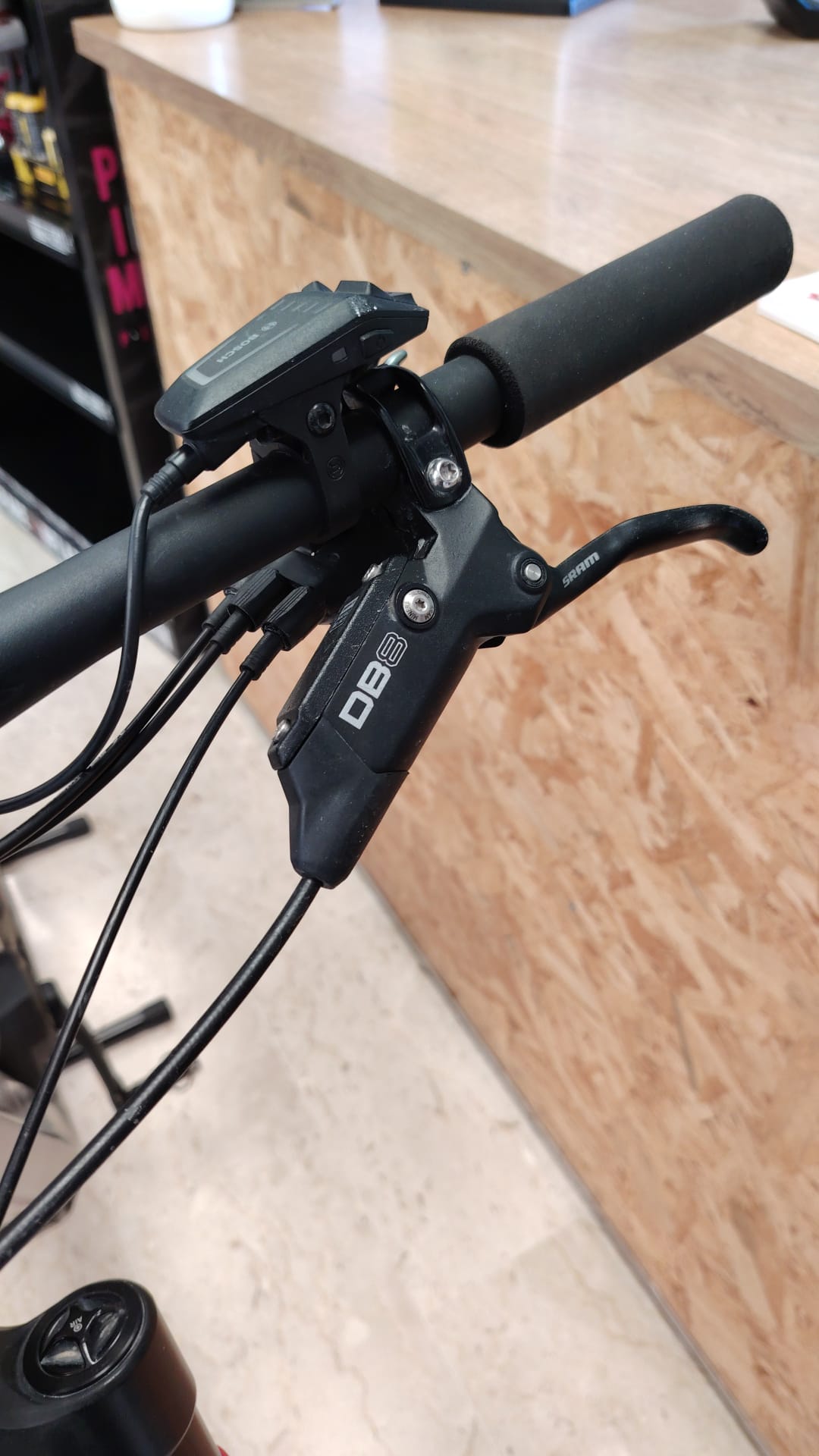

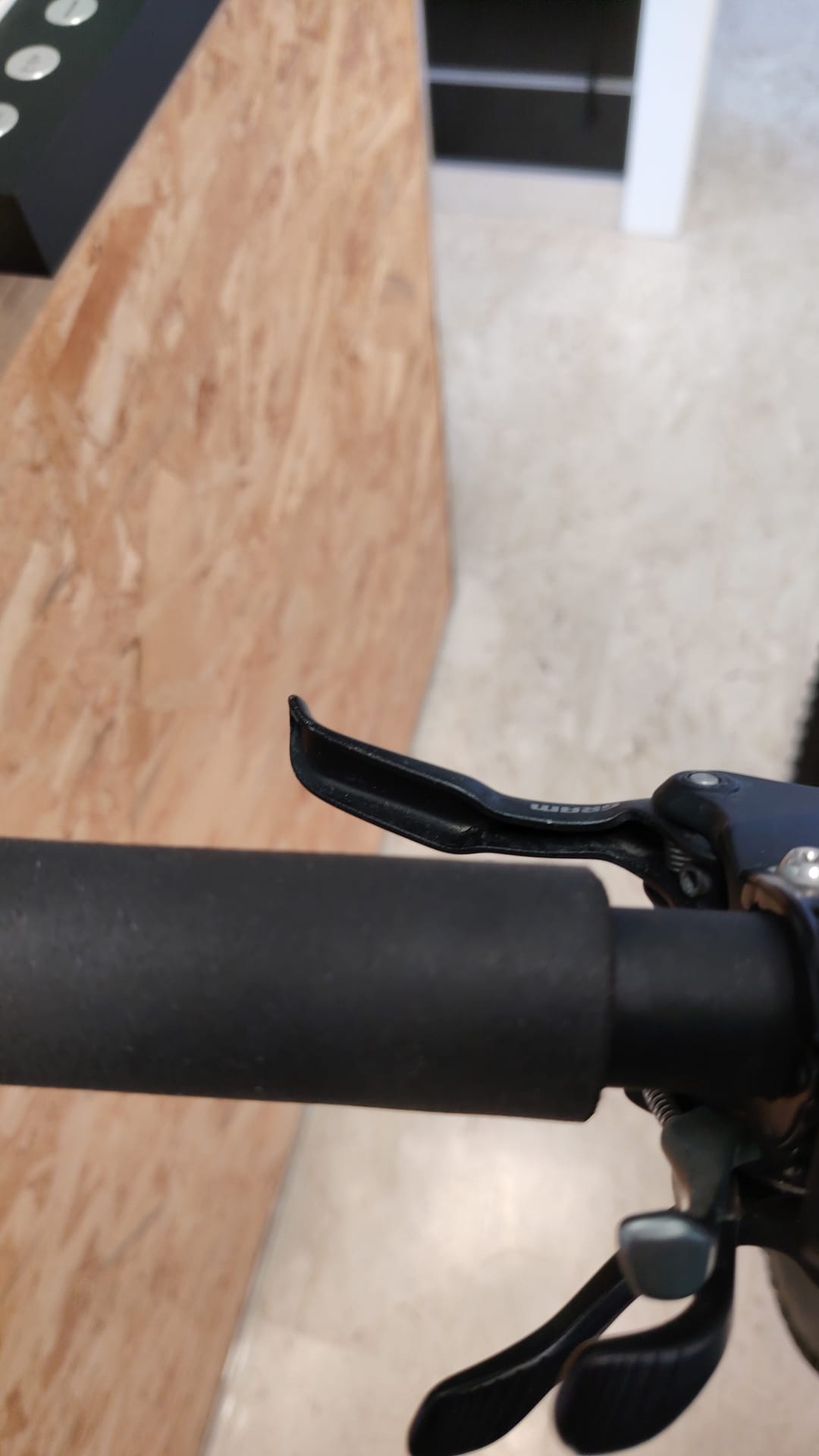

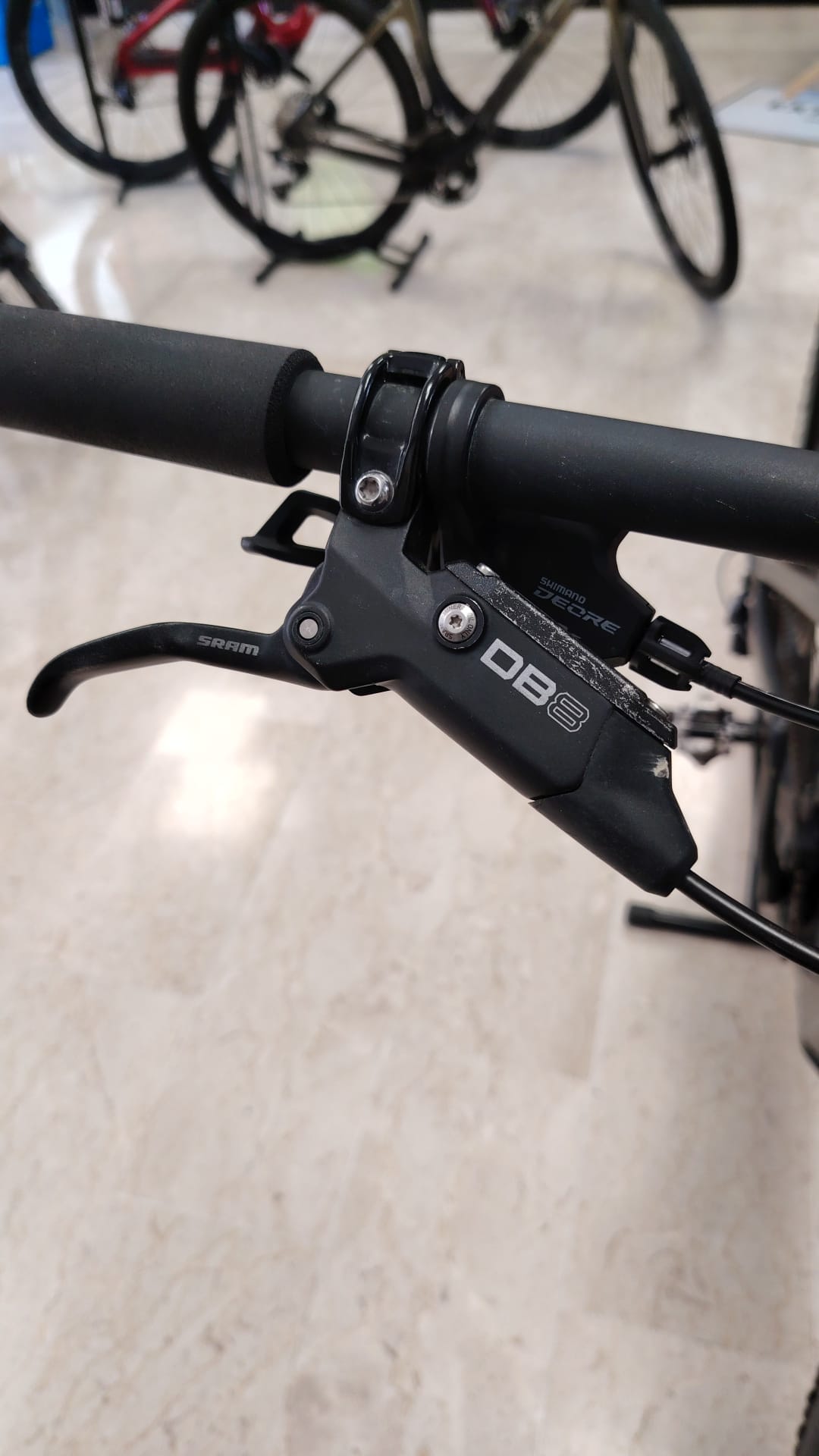

Freni
SRAM DB8 4 Piston Disc

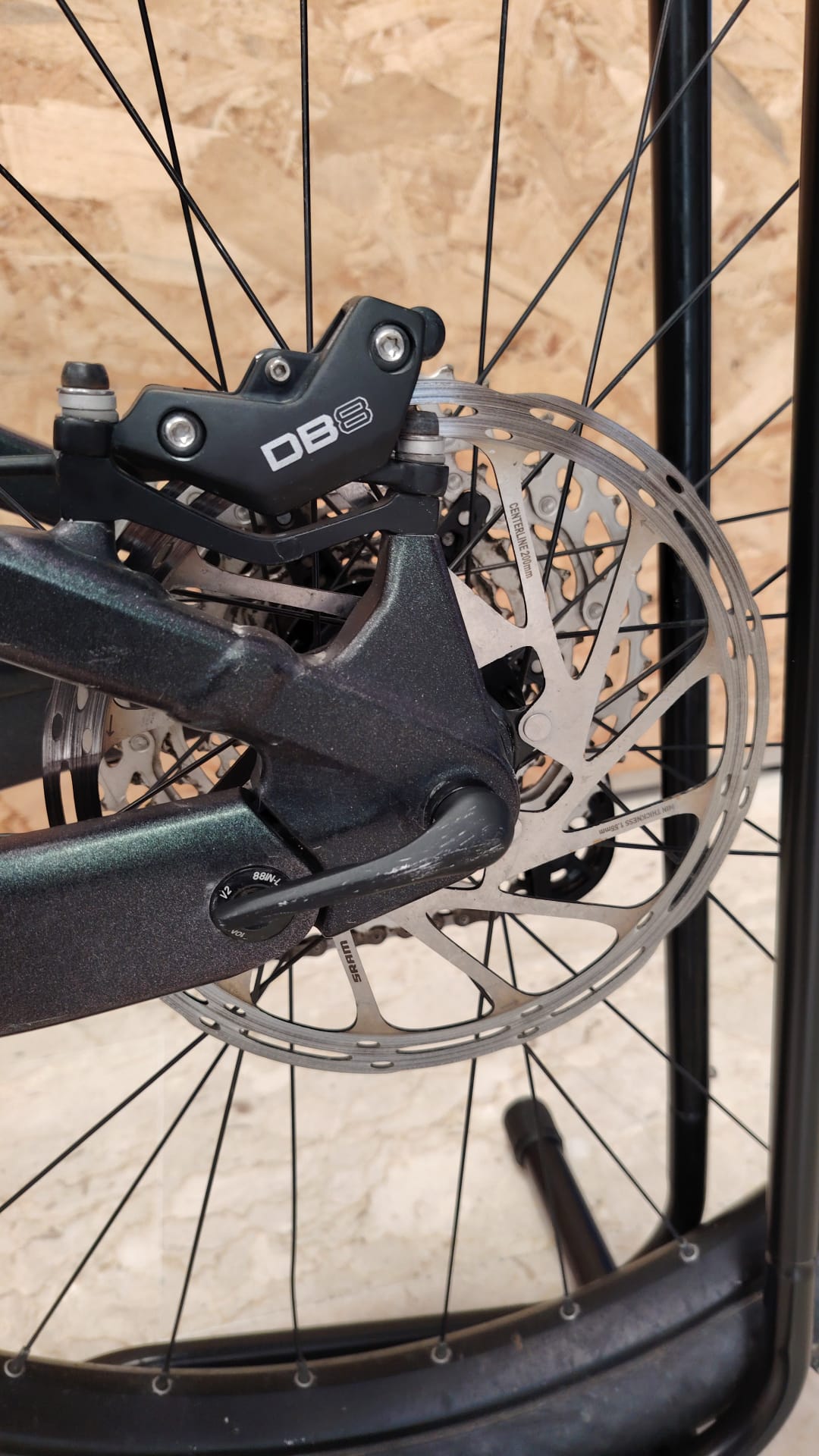

Disco del freno
SRAM Centerline CL Rotors 200mm F&R

Manubrio
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips

Attacco manubrio
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8″

Reggisella
Syncros Duncan Dropper Post 2.5
Size S 125mm

Sella
Syncros Tofino 2.5 Regular

Serie sterzo
Acros / 1.8″
ZS66 OD74 / integr. Cable

Mozzo anteriore
Shimano HB-MT410-B CL / 15x110mm

Mozzo posteriore
Shimano FH-MT410-B CL / Boost 12x148mm

Raggi
Stainless Black

Cerchio
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready

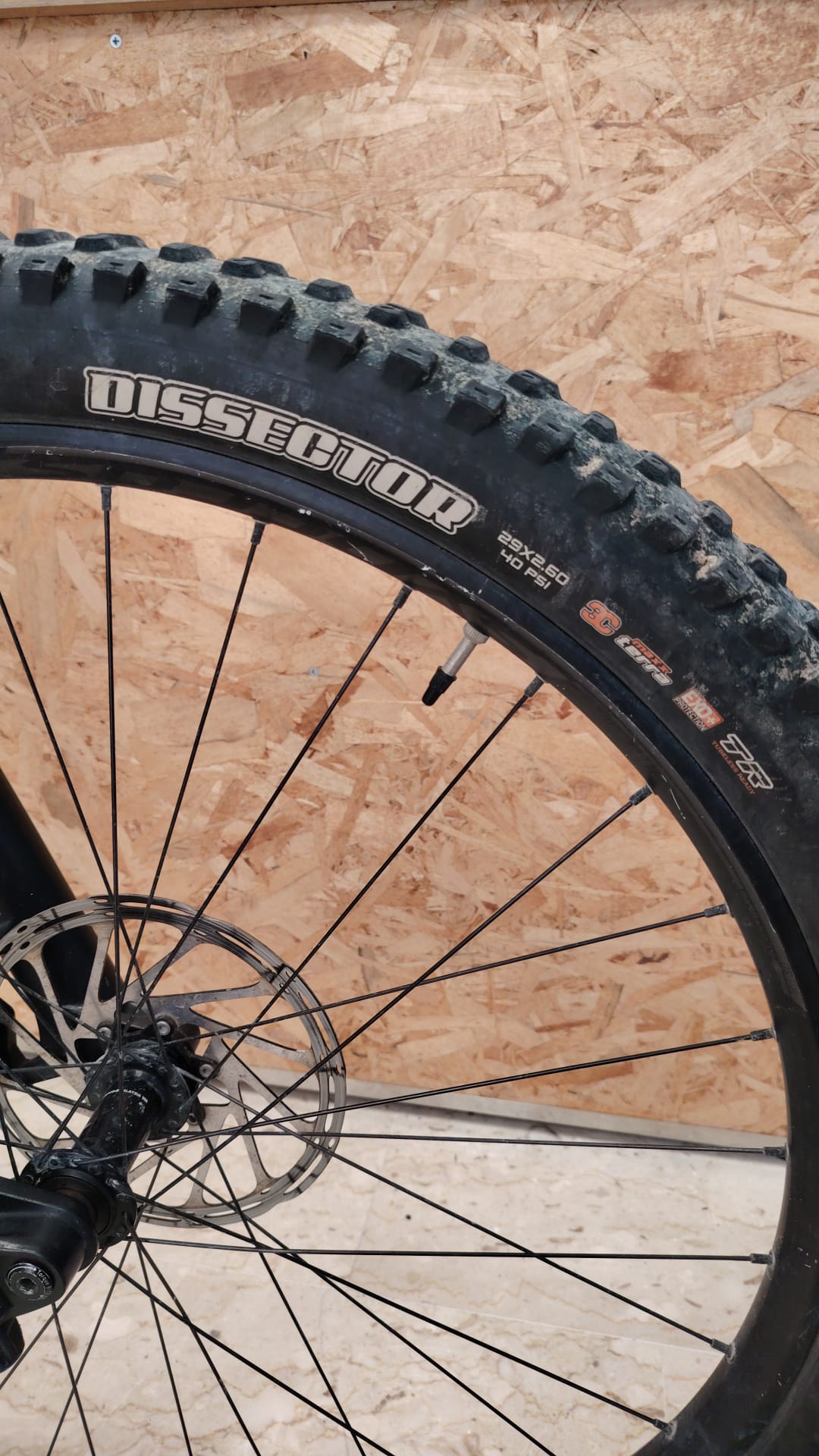

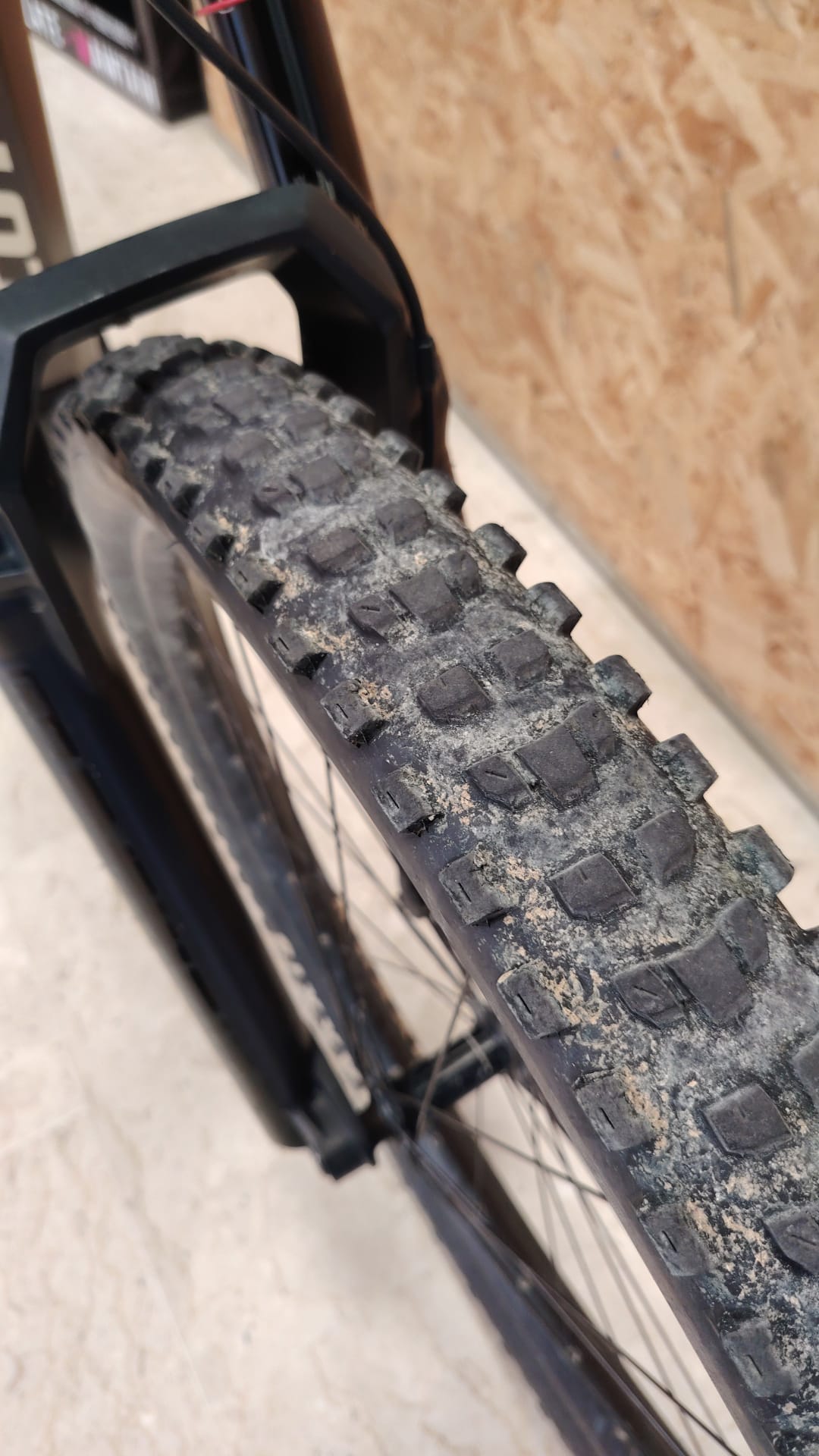

Gomma anteriore
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

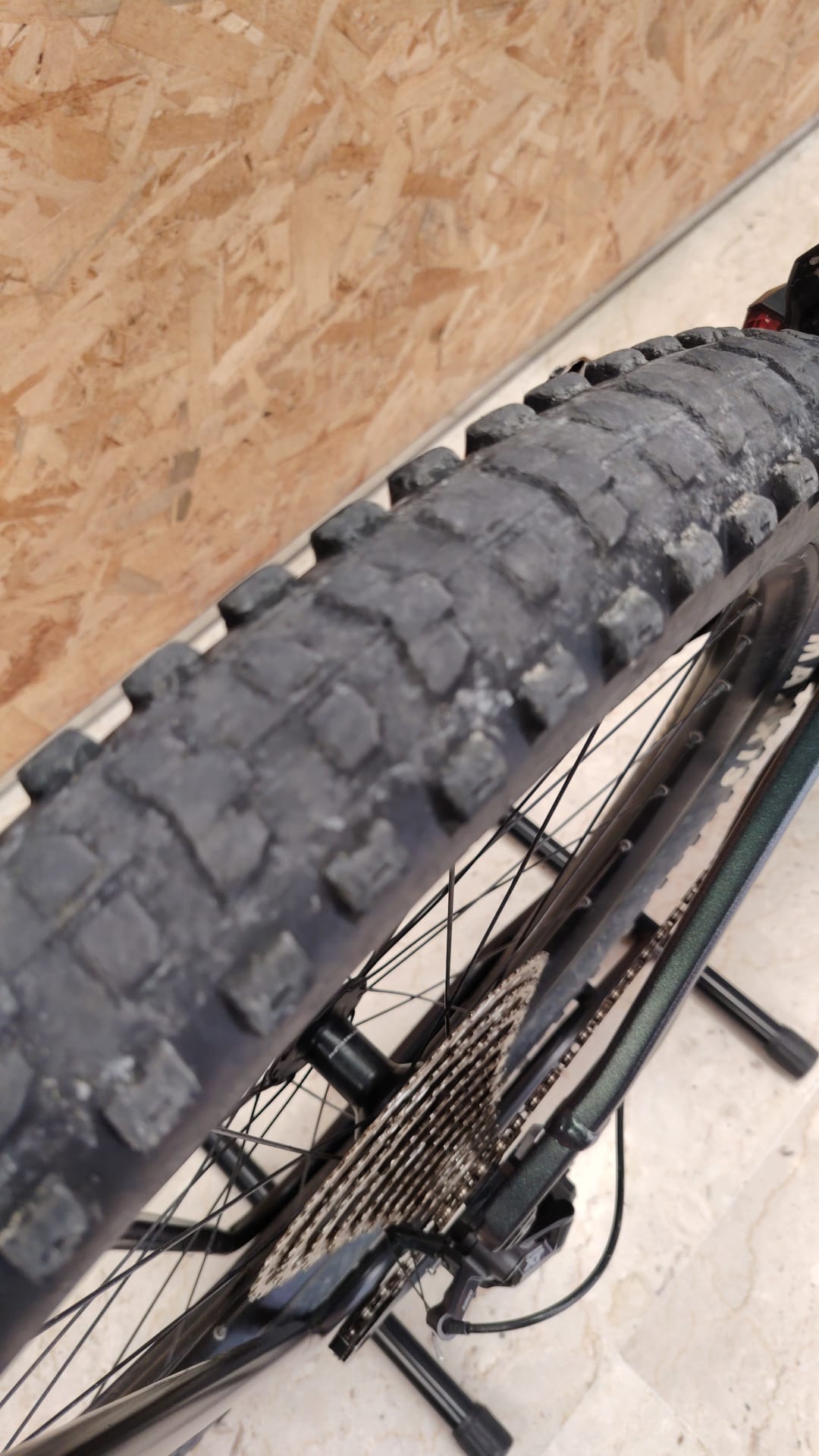

Gomma posteriore
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

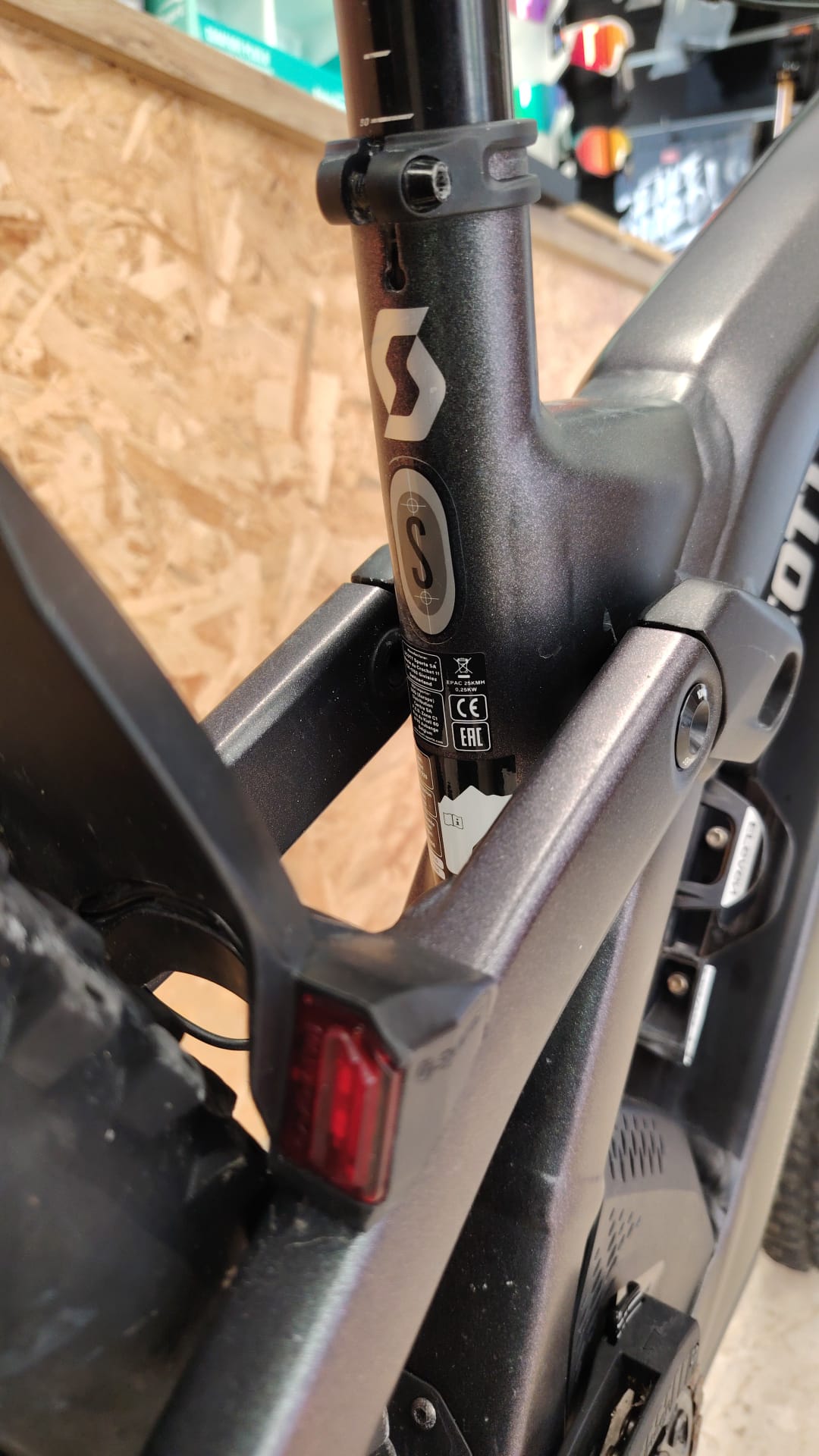

Luci
Syncros integrated rear fender light
Front Light Cable pre-installed

Peso in kg (approx.)
26.5 (with tubes)
